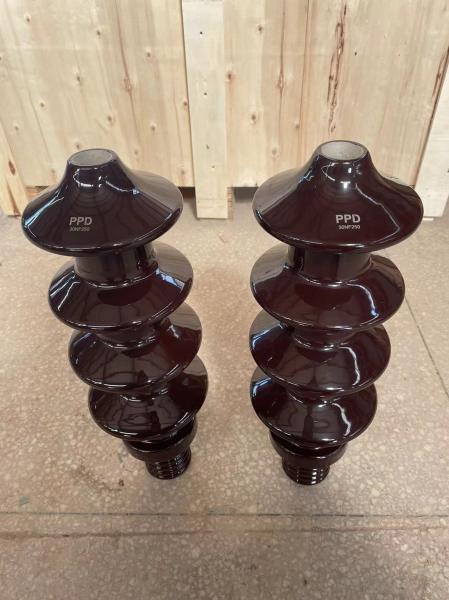

DIN Standard 30kV 250A Transformer Porcelain Bushing With Brown Glazed

Brand Name : CPE

Model Number : 30NF250

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3000PCS PER MONTH

Delivery Time : 35DAYS

Packaging Details : WOODEN CRATE

Color : Brown

Material : Porcelain C-110

Application : Transmission and distribution of electric power

Standard : DIN42531

Product name : Transformer porcelain bushing

Sample : Provided

Oem : YES

Pack : Standard export packing

Contact Now

Well sold DIN standard 30kV250A Transformer Porcelain Bushing /Brown glaze

Description:

Transformer bushing is to lead high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation, but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current

Specifications:

DIN Standard 30kV 250A Transformer Porcelain Bushing With Brown Glazed

1. Creepage distance: 600mm
2. Power frequency withstand voltage: 70kV
3. Lightning impulse withstand voltage: 170kV
4. Standard: DIN 42531

Competitive Advantage:

1. We offer 2 years quality guarantee.

2. Bushings have excellent performance due to many years' exporting experience.

3. OEM design available upon customer’s requirement or special technical specifications.

4. Our bushings are well packed with inner cartons and ourter wooden case.

DIN Standard 30kV 250A Transformer Porcelain Bushing With Brown Glazed
